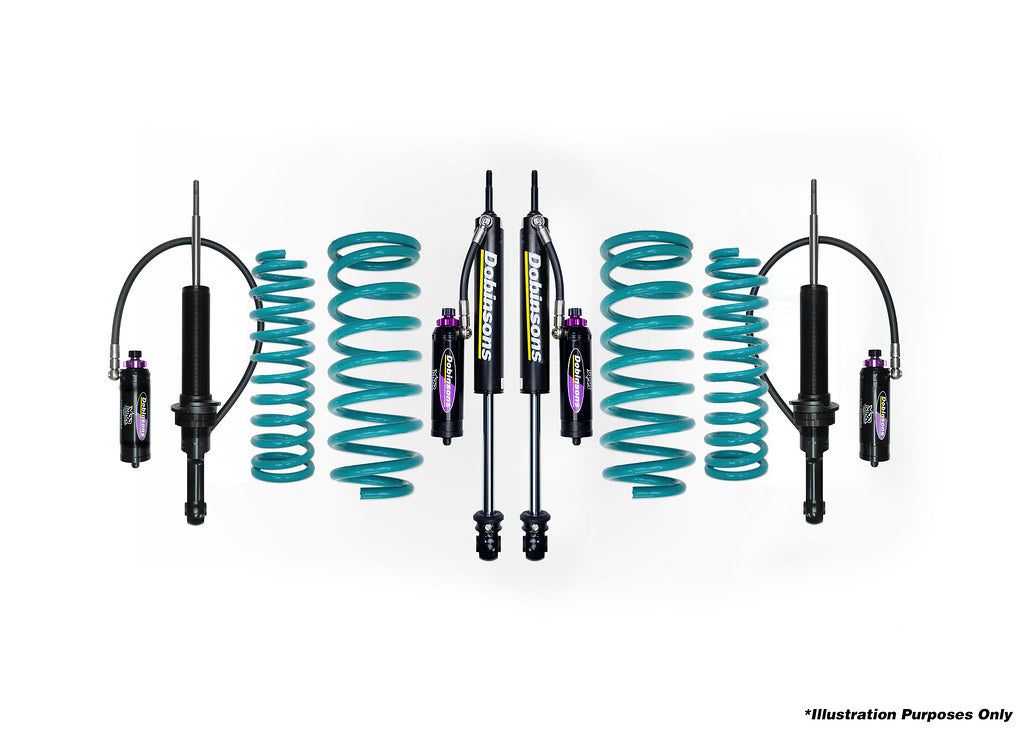

Dobinsons 2-3" MRR 3-way Adjustable Lift Kit for Toyota Sequoia 2023 on - DSSKITMRA23S

Dobinsons 2-3" MRR 3-way Adjustable Lift Kit for Toyota Sequoia 2023 on - DSSKITMRA23S

$3,335.00
$3,335.00
Sale Sold out

    • TRD PRO will yield 1" less lift in front and 1" less in rear
    • Front Coil Spring Specs
      • C59-834 (50mm - 2") 0-110lb Load
      • C59-836 (50mm - 2") 110-220lb Load
      • C59-838 (75mm - 3") 0-110lb Load
      • C59-840 (75mm - 3") 110-220lb Load
    • Rear Coil Spring Specs
      • C59-817V (25mm - 1") Stock Load
      • C59-819V (50mm - 2") Stock Load
      • C59-821V (75mm - 3") Stock Load / (50mm - 2") 220-440lb Load
      • C59-823V (75mm - 3") 220-440lb Load / (50mm - 2") 600-800lb Load
      • C59-851V (75mm - 3") Stock Load (True 3" for TRD PRO ONLY, Will overlift on non TRD PRO)
      • C59-853V (75mm - 3") 220-440lb Load (True 3" for TRD PRO ONLY, Will overlift on non TRD PRO)
    • 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
    • 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
    • 20 Stage Low Speed Compression - For creepy crawling and cornering
    • 15 Stage Rebound - Control your coils, prevent bucking
    • 60mm CNC Machined High Flow Billet Aluminium Race Piston
    • 2.6" Precision Honed Shock Body
    • 3mm Thick Heavy Duty DOM Seamless 66mm O.D. shock Body Precision Honed to +/- 0.04mm
    • Upgraded 3 Stage FKM-HNBR Sealing System
    • TSUGAMITM CNC machined components for precise tolerances
    • ParkerTM Braided High Pressure Hoses
    • 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
    • T6 6061 Height Adjustable Spring Seat
    • Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
    • 60mm Full 6063 aluminum remote reservoir
    • Lightweight CNC Machined Low Friction floating piston
    • High Quality O.E.M. Grade Natural Rubber Bushings
    • Single Piece Lower Leg
    • EDP Surface Protection
    • Direct Bolt-On Design
    • CNC TIG Precision Welded Body End Mounts
    • Fully Rebuildable Design
    • If doing a 2.5" lift or higher in the front, a diff-drop kit or longer TRD CV-axles are REQUIRED, faliure to complete these requirements could cause OE CV-axle faliure.
    • TRD axle shafts: PT362-3432B and PT362-3431B

    ****Coil seat for MRA59-A446 should be set at 175mm (6.87") from the strut bushing eye to top of coil isolator****
