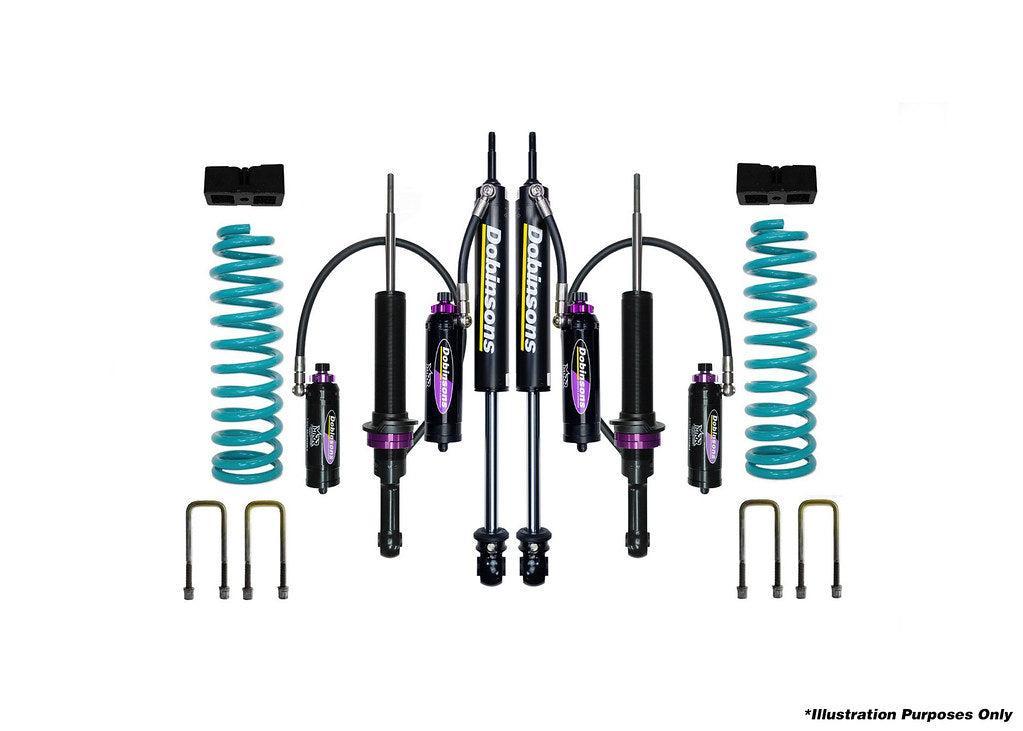

Dobinsons 2.0" to 3.0" MRR 3-Way Adjustable Lift Kit for Toyota Hilux Revo Dual Cab 2015 and on with Quick Ride Rear - DSSKITMRA52
Dobinsons 2.0" to 3.0" MRR 3-Way Adjustable Lift Kit for Toyota Hilux Revo Dual Cab 2015 and on with Quick Ride Rear - DSSKITMRA52
Regular price
$2,865.00
Regular price
Sale price
$2,865.00
Unit price
/
per
Couldn't load pickup availability
- Front Coil Spring Specs:
- C59-350 (50mm-2") up to 100lb
- C59-354 (50mm-2") 100-135lb / (75mm-3") Stock Weight
- C59-318 (75mm-3") 75-110lb
- C59-736 (75mm-3") 135-220lb
- 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
- 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
- 20 Stage Low Speed Compression - For creepy crawling and cornering
- 15 Stage Rebound - Control your coils, prevent bucking
- 50mm CNC Machined High Flow Billet Aluminium Race Piston
- 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
- Upgraded 3 Stage FKM-HNBR Sealing System
- TSUGAMITM CNC machined components for precise tolerances
- ParkerTM Braided High Pressure Hoses
- 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- T6 6061 Height Adjustable Spring Seat
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
- 60mm Full 6063 aluminum remote reservoir
- Lightweight CNC Machined Low Friction floating piston
- High Quality O.E.M. Grade Natural Rubber Bushings
- Single Piece Lower Leg
- EDP Surface Protection
- Direct Bolt-On Design
- CNC TIG Precision Welded Body End Mounts
- Fully Rebuildable Design
Strut Assembly Video
Reservoir Installation Instructions
Front Strut Assembly Instructions
