Dobinsons

Dobinsons 1.5" to 3.0" MRR 3-Way Adjustable Lift Kit for Toyota Hilux Vigo Dual Cab 3.0L TD / 4.0L V6 with Quick Ride Rear - DSSKITMRA79

Dobinsons 1.5" to 3.0" MRR 3-Way Adjustable Lift Kit for Toyota Hilux Vigo Dual Cab 3.0L TD / 4.0L V6 with Quick Ride Rear - DSSKITMRA79

$2,865.00
$2,865.00
Sale Sold out

  • Front Coil Spring Specs
    • C59-300 - 40mm (1.6") lift, Stock Weight
    • C59-302 - 50mm (2.0") lift, Stock Weight
    • C59-314 - 50mm (2.0") lift, 110-220lb Load / 75mm (3.0") lift, stock weight
    • C59-352 - 75mm (3.0") lift, 110-220lb Load
  • 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
  • 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
  • 20 Stage Low Speed Compression - For creepy crawling and cornering
  • 15 Stage Rebound - Control your coils, prevent bucking
  • 50mm CNC Machined High Flow Billet Aluminium Race Piston
  • 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
  • Upgraded 3 Stage FKM-HNBR Sealing System
  • TSUGAMITM CNC machined components for precise tolerances
  • ParkerTM Braided High Pressure Hoses
  • 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
  • T6 6061 Height Adjustable Spring Seat
  • Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
  • 60mm Full 6063 aluminum remote reservoir
  • Lightweight CNC Machined Low Friction floating piston
  • High Quality O.E.M. Grade Natural Rubber Bushings
  • Single Piece Lower Leg
  • EDP Surface Protection
  • Direct Bolt-On Design
  • CNC TIG Precision Welded Body End Mounts
  • Fully Rebuildable Design

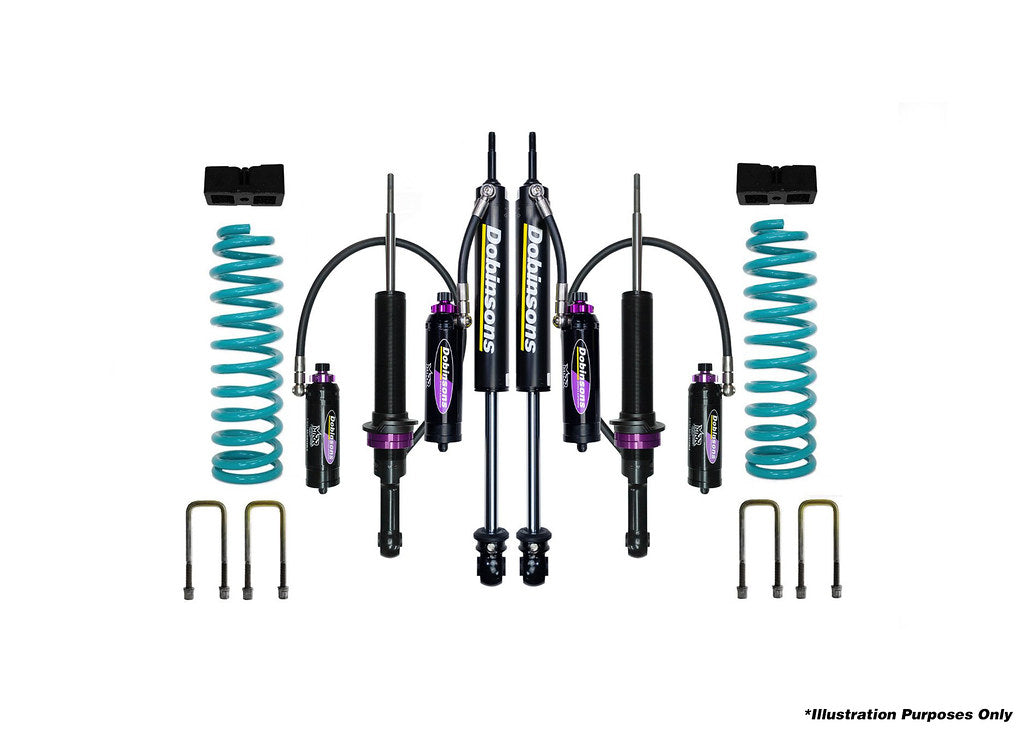

  • Includes 2 Front Struts, 2 Rear Shocks, 2 Front Coil Springs (a pair), Rear Spacer Blocks and U-Bolts
  • Rear Quickride lift blocks and U bolts lift 1.25 or 2 inches only no extra weight.
  • If you have a 2.5 diesel or 2.7L gas engine consult dobinsons for the propper lift.

Strut Assembly Video

Front Strut Assembly Instructions
