Dobinsons

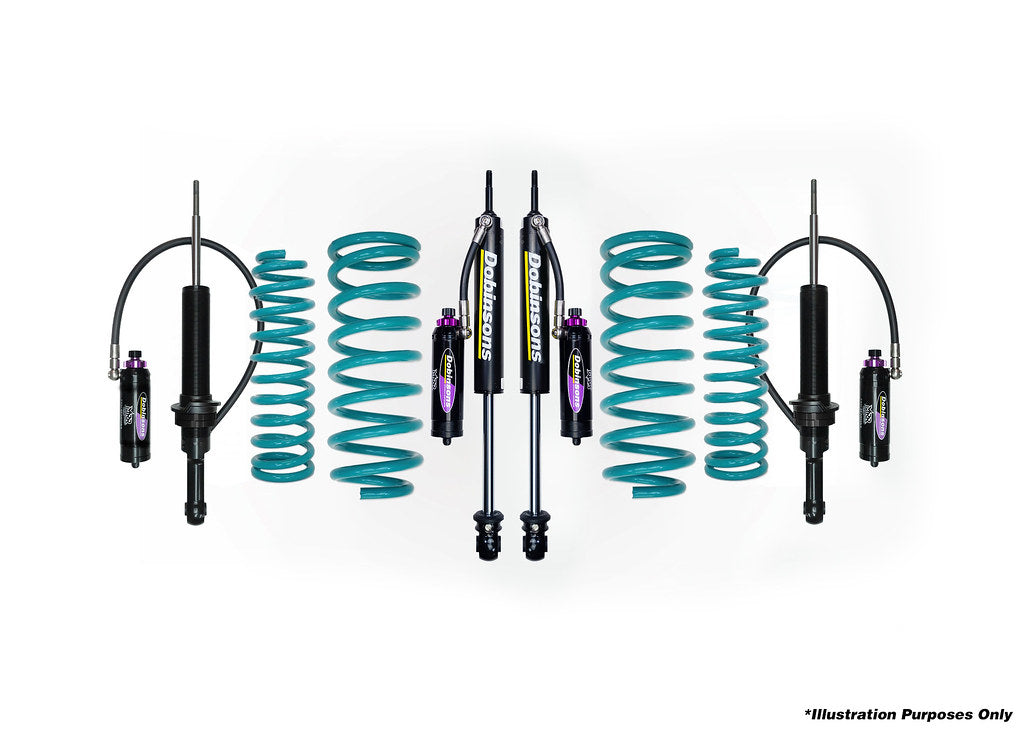

Dobinsons 0-2" MRR 3-way Adjustable Lift Kit for Toyota Land Cruiser 300 Series 2021 on - DSSKITMRALC300

Dobinsons 0-2" MRR 3-way Adjustable Lift Kit for Toyota Land Cruiser 300 Series 2021 on - DSSKITMRALC300

Regular price $3,300.00
Regular price Sale price $3,300.00
Sale Sold out

  • Front Coil Spring Specs
    • C59-818 (Stock Height) 110-220lb Load
    • C59-820 (50mm-2") Stock Load
    • C59-822 (50mm-2") 110-150lb Load
    • C59-824 (50mm-2") 150-220lb Load
    • C59-844 (75mm-3") Stock Load
    • C59-846 (75mm-3") 120-220lb Load
  • Rear Coil Spring Specs
    • C59-817V (10mm - 0.5") Stock Load
    • C59-819V (30mm - 1.2") 0-110lb Load
    • C59-821V (30mm - 1.2") 220-440lb Load
    • C59-823V (30mm - 1.2") 550-880lb Load
    • C59-825V (30mm - 1.2") 880-1000lb Load
    • C59-851V (50mm - 2") 0-110lb Load
    • C59-853V (50mm - 2") 550-880lb Load
  • 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
  • 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
  • 20 Stage Low Speed Compression - For creepy crawling and cornering
  • 15 Stage Rebound - Control your coils, prevent bucking
  • 60mm CNC Machined High Flow Billet Aluminium Race Piston
  • 3mm Thick Heavy Duty DOM Seamless 66mm O.D. shock Body Precision Honed to +/- 0.04mm
  • Upgraded 3 Stage FKM-HNBR Sealing System
  • TSUGAMITM CNC machined components for precise tolerances
  • ParkerTM Braided High Pressure Hoses
  • 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
  • T6 6061 Height Adjustable Spring Seat
  • Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
  • 60mm Full 6063 aluminum remote reservoir
  • Lightweight CNC Machined Low Friction floating piston
  • High Quality O.E.M. Grade Natural Rubber Bushings
  • Single Piece Lower Leg
  • EDP Surface Protection
  • Direct Bolt-On Design
  • CNC TIG Precision Welded Body End Mounts
  • Fully Rebuildable Design
  • Due to lower ride height, some vehicles may yield more lift than advertised.

    ****Coil seat for MRA59-A688 should be set at 222mm(8.74") from the strut bushing eye.


    Front Reservoir Instructions

    Rear Reservoir Instructions
